Product Description
CABINET CONSTRUCTION
- Exhaust Air Energy Recovery reuses waste energy to preheat incoming water
- 54" Single Tank + 36" Heavy Duty Prewash
- Automated Delime Function with user-customizable alert intervals
- 255 Racks Per Hour
- 0.39 Gallons/Rack With Energy Sentinel (idle pump shut-off)
- Advanced Touchscreen Display intuitive condition alerts, with user friendly cleaning and operation visual guidance, multi-lingual
- Enhanced Visual On-board Diagnostics quickly identify machine faults for rapid resolution and less downtime
- Automatic Tank Fill
- Programmable Machine Dwell pauses rack in wash zone for extended cleaning, NSF Certified Pot & Pan Mode
- Automatic Drain Valve
- Single-Piece Hood Design
- Single-Piece Scrap Screen more robust and faster cleaning
- Single-Piece Stainless Steel Upper And Lower Wash Arm Manifolds
- Single-Point Electrical Connection
- 20” Standard Vertical Clearance accommodates 18” x 26” sheet pans
- Fully Insulated Doors open a full 180° for unrestricted cleaning access
- All Stainless Steel Heavy Gauge Construction & including base, legs and feet
- Enclosure Panels (front and sides)
- 2 HP Pump Motor with stainless steel impeller
- Factory Authorized Start-Up
- Vent Fan Control
- ENERGY STAR® Certified
- Made in America
Limited Warranty: 1 Year Parts & Labour
OPTIONS
- Two-point electrical connection, separate for machine and booster (field convertible)
- 33" Blower dryer - electric
- Direct link connectivity solution
- Direct link plus+ connectivity solution
ACCESSORIES
- Drain water tempering kit (unmounted)
- Table limit switch, unmounted (recommended on all rack conveyor installations) (unmounted)
- WHISKER STYLE
- BUTTON STYLE
- Vent cowl, stainless steel with 7" stacks & locking dampers
- Flanged feet (unmounted)
- Water hammer kit (unmounted)
- Chemical pump kit (detergent and rinse aid, mounted and interwired)
- Water pressure regulating valve (unmounted; standard with booster)
- ION scale prevention device (unmounted) (HW & CW lines)
- Water softening system (manufactured, warrantied and serviced by Kinetico)
- Dish racks:
- PEG RACK
- FLAT RACK
- SHEET PAN RACK
- Splash shields (load end only)
- Cantilever sideloader (without hood) for 90°F load operation
- 24" SIDELOAD
- 30" SIDELOAD (ACCEPTS SHEET PANS)
- Model PRO-90B unloader (90° corner conveyor table)
- Model PRO-90B loader (90° corner conveyor table)
- Model RCT 64 or RCT 84 roller conveyor table (see factory for custom length)
- Stainless steel rear enclosure panels
- Correctional package (contact factory)
Product Videos
Custom Field

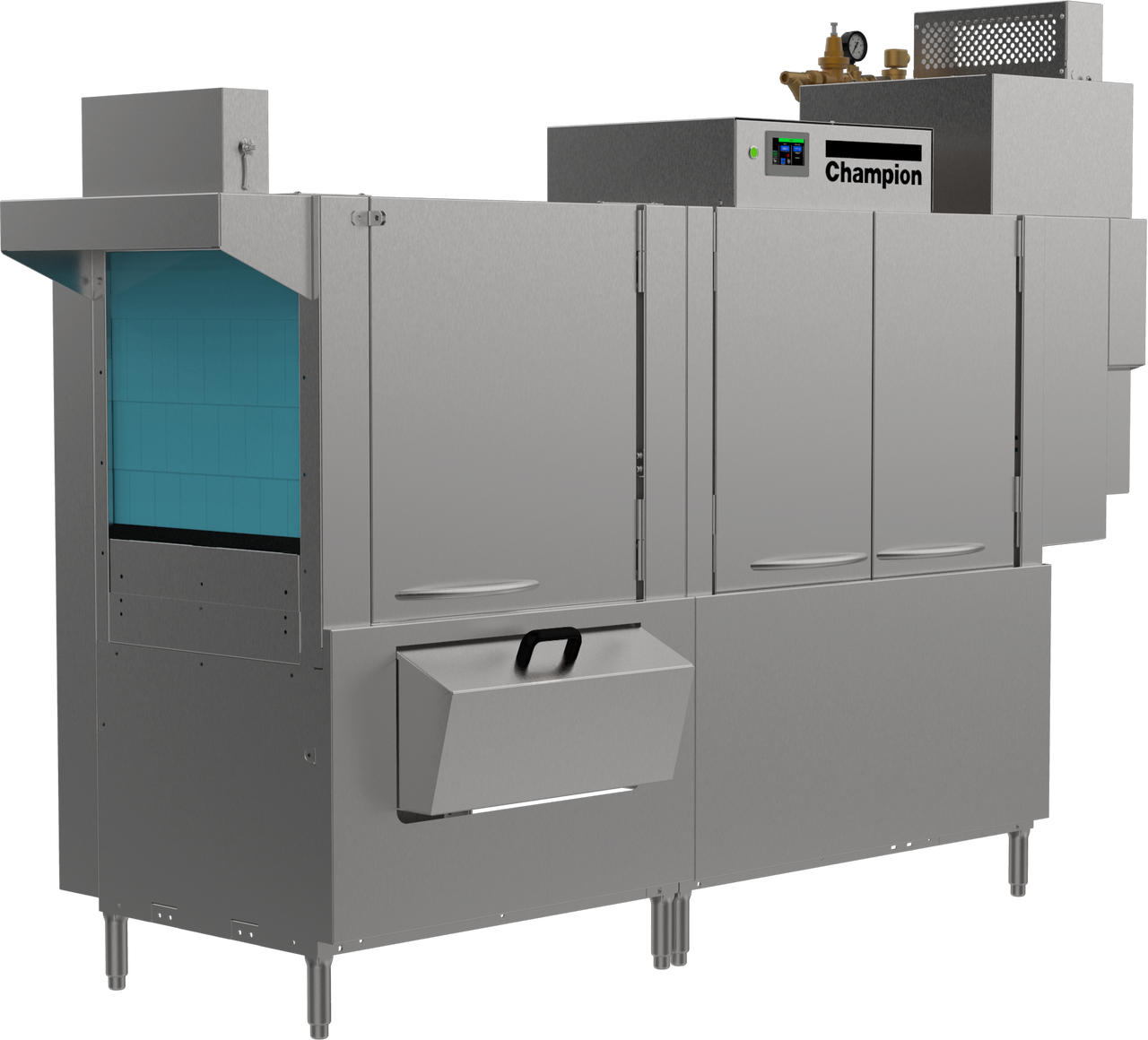

Model # 90-PRO-HD-HR
Type Heavy Duty
Exterior Dimensions 65-1/4" H x 94" W x 26-11/16" D
Recommended Use No pre-scrapping of wares, requires heavy duty prewash, up to 5100 dishes per hour
Vent Option Vented
Field Convertible Single Point Connection to Two-Point Connection
Remote System Access Optional Direct Link+
Capacity per Hour 255 Racks
Pre-Wash Length 36" Heavy Duty
Energy Star Certified Yes
Resource - PDF - Spec Sheet [Electric] https://store-txp4k4lqe2.mybigcommerce.com/content/spec-sheets/Rack-Conveyors/90_PRO_HD_HR.pdf
Resource - PDF - Spec Sheet [Steam] https://store-txp4k4lqe2.mybigcommerce.com/content/spec-sheets/Rack-Conveyors/90_PRO_HD_HR_Steam.pdf
Resource - PDF - Manual https://store-txp4k4lqe2.mybigcommerce.com/content/current-production-manuals/Rack-Conveyors/PRO44_54PRO_Series_INSTALL_117684.pdf
Resource - PDF - Operation Guide https://store-txp4k4lqe2.mybigcommerce.com/content/cleaning-operation-guides/Rack-Conveyors/44-66FF_STD_VHR_OPS_117594.pdf
Resource - PDF - Parts Manual https://store-txp4k4lqe2.mybigcommerce.com/content/current-production-manuals/Rack-Conveyors/64PRO_Parts_116083.pdf
Resource - PDF - Dryer Spec Sheet https://store-txp4k4lqe2.mybigcommerce.com/content/spec-sheets/Rack-Conveyors/33BD-PRO81.pdf
Resource - PDF - Dryer Manual https://store-txp4k4lqe2.mybigcommerce.com/content/current-production-manuals/Rack-Conveyors/33BD-PRO_117246.pdf
Additional Information Limited Warranty: 1 Year Parts & Labour
